Uusi Grundfos Pumppu CR1-10 A-A-A-E-HQQE
Sijainti
Tuotetiedot

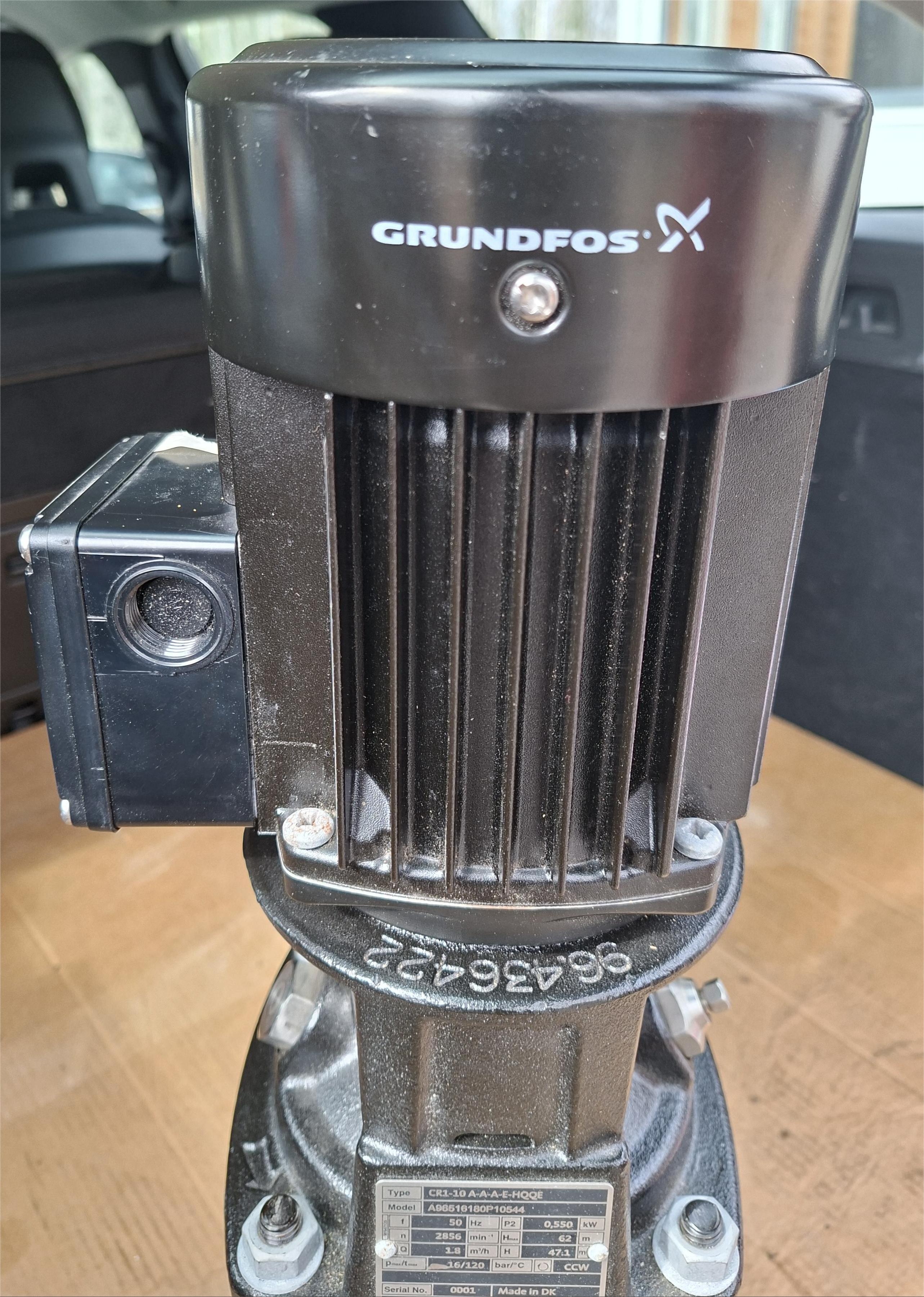

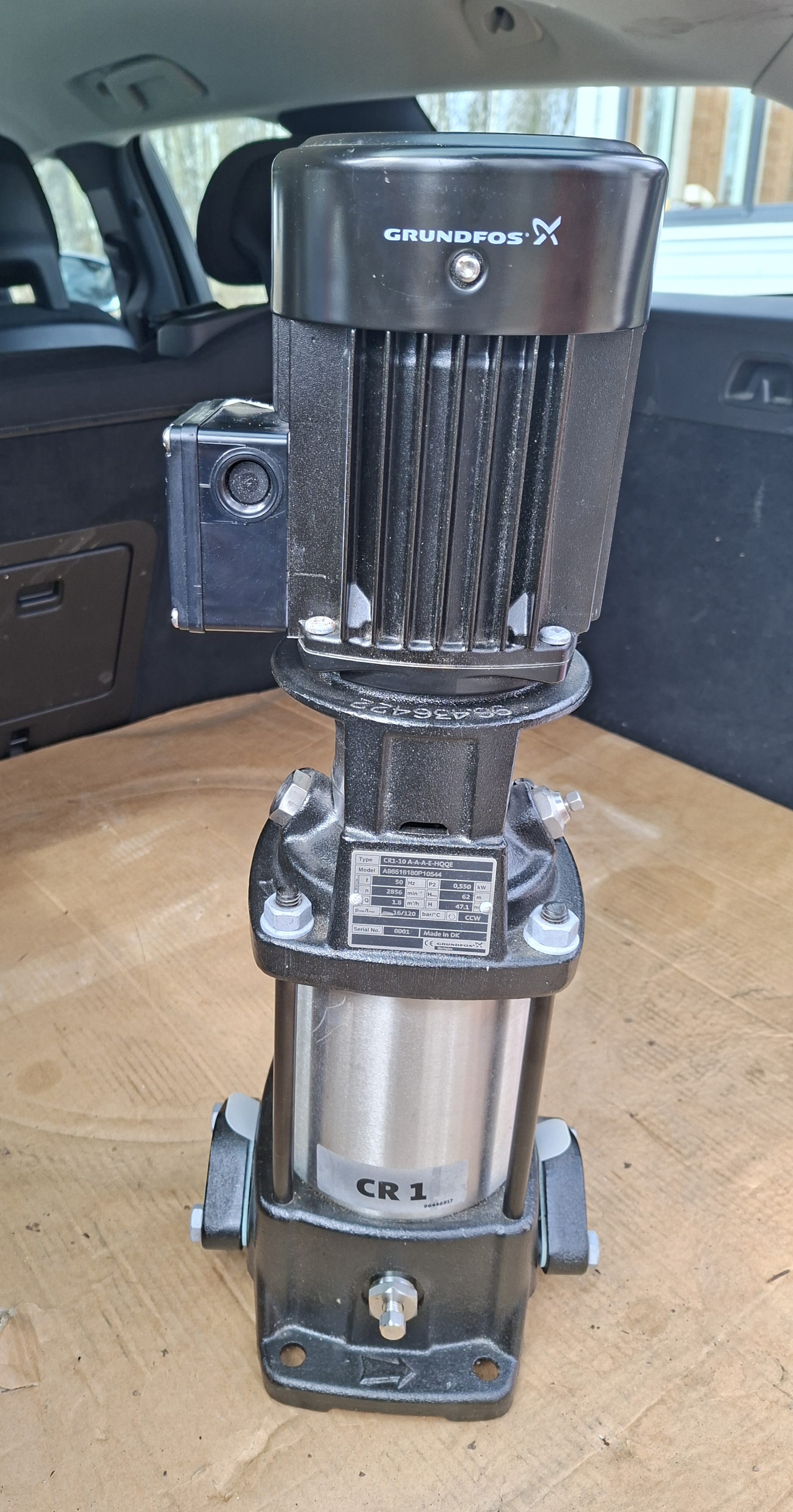

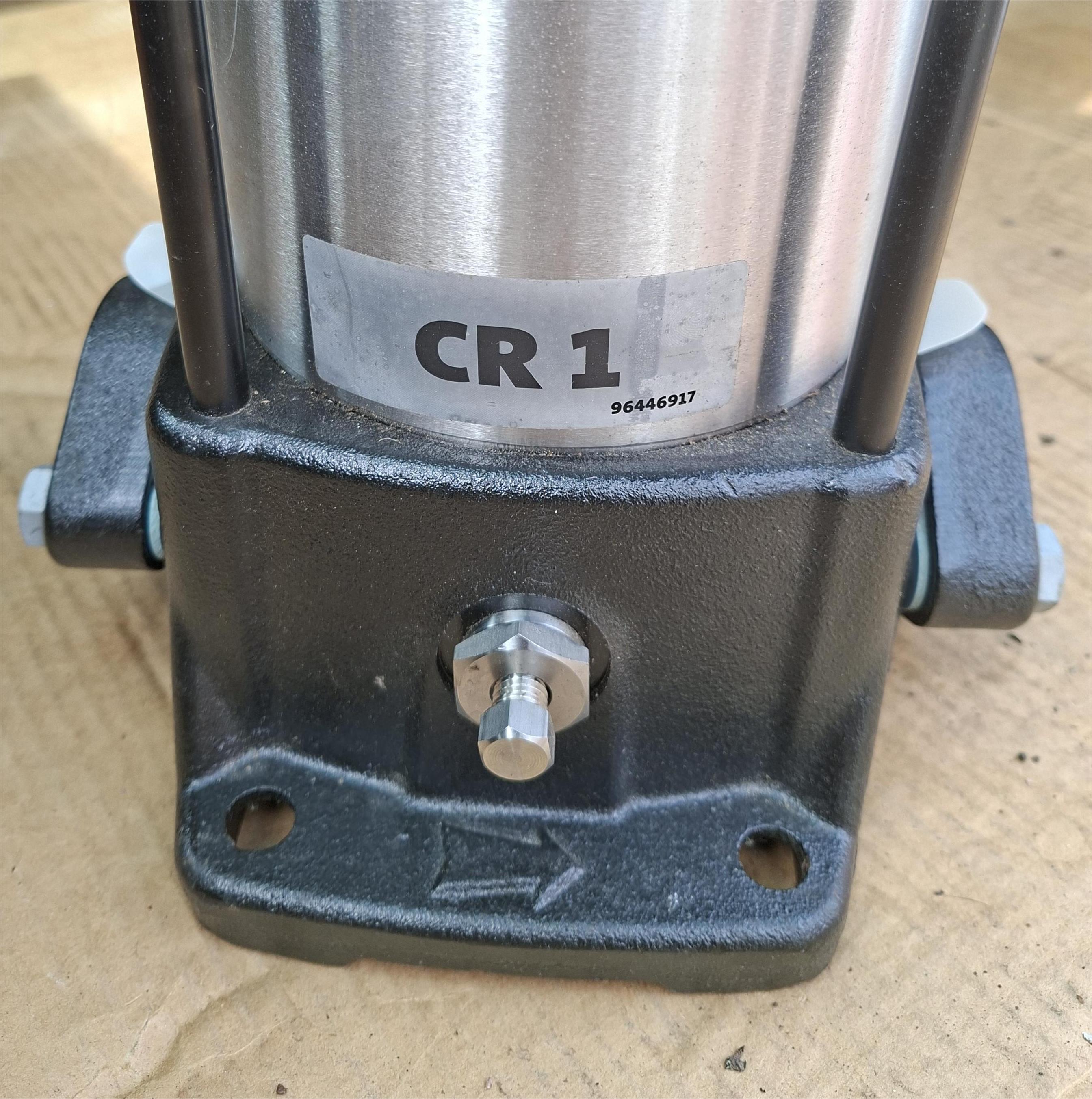

Grundfos Pumppu
Tyyppi: CR1-10 A-A-A-E-HQQE
Model: A96516180P10544
pmax/tmax 16/120
0,550 kW
Serial No. 0001
https://www.lenntech.com/uploads/grundfos/96516180/Grundfos_CR-1-10-A-A-A-E-HQQE.pdf
Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). The pump head and base are in cast iron- all other wetted parts are in stainless steel.
A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via oval flanges with internal Rp threads.
The pump is fitted with a 3-phase, fan-cooled asynchronous motor.
Further product details
Steel, cast iron and aluminium components have an epoxy-based coating made in a cathodic electro-deposition (CED) process. CED is a high-quality dip-painting process where an electrical field around the products ensures deposition of paint particles as a thin, well-controlled layer on the surface.
